Doping and devices

    from matplotlib import pyplot

import numpy as np
from scipy.optimize import root_scalar

import plotly.graph_objs as go

from common import draw_classic_axes, configure_plotting

configure_plotting()


def sqrt_plus(x):
    return np.sqrt(x * (x >= 0))


# Band structure parameters.
E_V, E_C, E_F = -1.2, 1.8, .4
E_D, E_A = E_C - .7, E_V + .5
m_h, m_e = 1, .5

Learning goals

After this lecture you will be able to:

Compute carrier density and Fermi level position of doped semiconductors
Describe the functioning principles of semiconducting devices

Lecture video (Part 1/2)

Lecture video (Part 2/2)

Lecture video - Extra topics

In the previous lecture, we learned how to deal with partially filled bands. The concept of electrons/holes established the foundations needed to understand semiconductors. We saw that the filling in semiconductors can be controlled by tuning the temperature. However, Fermi level control through temperature is still far too constrained and leads to equal electron and hole densities $n_{e} = n_{h}$ . The full utility of semiconductors is achieved through another Fermi level control method - doping. In today's lecture, we will take a look at how doping allows the fine control of Fermi level and the practical applications that come with it.

Adding an impurity to semiconductor¶

In order to understand doping, we need to remember some basic chemistry. Most semiconductors are made up of group IV elements (Si, Ge) or binary compounds between group III-V elements (GaAs). In both cases, there are 4 valence electrons per atom. If we want to increase the average number of electrons per atom, we can add a group V element that has an extra valence electron. We therefore refer to group V elements as donor impurities. However, the extra donor electron is bound to the impurity because group V elements also have an extra proton. In order to estimate the binding strength, we treat the lattice as a background and only consider the system of an electron bound to a proton. We immediately recognize this system as a Hydrogen model with energy levels

E_{n} = - \frac{m_{e} e^{4}}{8 π^{2} ℏ^{3} ε_{0}^{2} n^{2}} = - R_{E} / n^{2} = - \frac{13.6 eV}{n^{2}} .

The spatial extent of the bound state is given by the Bohr radius:

r_{B} = 4 π ε_{0} ℏ^{2} / m_{e} e^{2} .

However, we have to remember that the above equations are written in the free space background. In our case, the extra electron moves in the semiconductor's conduction band and not free space. Therefore, there are a couple of differences from the Hydrogen model. One difference is that the electron's mass is conduction band's effective mass. Another difference is that the interactions between the electron and proton are screened by the lattice. As a result, we need to introduce the following substitutions: $m_{e} \to m_{e}^{*}$ , $ϵ_{0} \to ϵ ϵ_{0}$ . We thus estimate the energy of the bound state created by the impurity:

E = - \frac{m_{e}^{*}}{m_{e} ε^{2}} R_{E} = - 0.01 eV (in Ge),

with Bohr radius $r_{B} = 4$ nm (vs $r_{B} = 0.5$ Å in hydrogen). The electron is very weakly bound to the impurity! At room temperature (0.026 eV), the donor electron is easily thermally excited into the conduction band.

On the other hand, we can add a group III element to reduce the average number of electrons in the system. Group III elements lacks 1 electron and 1 proton and are therefore known as acceptors. We treat the absence of an electron as a hole and the lacking proton as an effective negative charge. As a result, we once again end up with a Hydrogen model, except this time the charges are flipped (hole circles around a negative center). That allows us to use the previous results and to conclude that an acceptor creates a weakly bound state above the valence band.

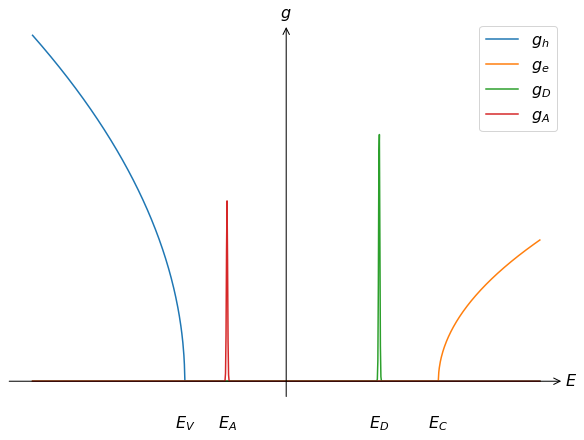

Density of states with donors and acceptors¶

E = np.linspace(-3, 3, 1000)
fig_dos, ax = pyplot.subplots()

n_F = 1/(np.exp(2*(E - E_F)) + 1)
g_e = m_e * sqrt_plus(E - E_C)
g_h = m_h * sqrt_plus(E_V - E)
ax.plot(E, g_h, label="$g_h$")
ax.plot(E, g_e, label="$g_e$")

sigma = 0.01
g_D = np.exp(-(E_D - E)**2 / sigma**2)
g_A = .7 * np.exp(-(E_A - E)**2 / sigma**2)
ax.plot(E, g_D, label='$g_D$')
ax.plot(E, g_A, label='$g_A$')
ax.legend()
ax.set_xticks([E_V, E_C, E_A, E_D])
ax.set_xticklabels(['$E_V$', '$E_C$', '$E_A$', '$E_D$'])
ax.set_ylabel('$g$')
ax.set_xlabel('$E$')
draw_classic_axes(ax, xlabeloffset=.2)

png

In order to model multiple donor/acceptor states, we assume that they are all degenerate at the binding energy. Therefore, we model the density of states of donors/acceptors as a Dirac delta function:

g_{D} (E) = N_{D} δ (E - E_{D}), g_{A} (E) = N_{A} δ (E - E_{A}),

where $N_{D}$ and $N_{A}$ are donor and acceptor concentrations respectively. The binding energies of the donor and acceptor are defined as $E_{A}$ and $E_{D}$ .

How good is this Dirac delta approximation? That depends on the concentrations. If we keep on adding impurities, then at some point the weakly bound states will begin to overlap. The overlap will create an effective tight-binding model that leads to a formation of an "impurity" band which breaks our approximation. We must therefore prevent the overlap of impurity bound states. From the previous section, we know that the extent of the bound state is roughly 4 nm and thus the distance between impurity atoms cannot exceed that. As a result, the impurity concentration is bounded to $N_{D} ≲ (1 / 4 nm)^{3}$ .

Number of carriers¶

We now have the necessary tools to determine how the Fermi level changes with doping. The algorithm to determine the Fermi level of a semiconductor was outlined in the previous lecture and we continue to use it here. The process is the same up until the third step—charge conservation. The semiconductor now contains dopant atoms that become ionized, and therefore charged. For example, if a donor impurity bound state loses an electron, it becomes positively charged. To solve the problem let us introduce all the necessary concentrations:

Symbol	Concentration of
$n_{e}$	electrons in the conduction band
$n_{h}$	holes in the valence band
$n_{D}$	electrons in the donor bound states
$n_{A}$	holes in the acceptor bound states
$N_{D}$	donor impurities
$N_{A}$	acceptor impurities

We determine the electron/hole occupation of the donor/acceptor states by applying Fermi-Dirac statistics to their simple Dirac delta density of states:

n_{D} = N_{D} \frac{1}{e^{(E_{D} - E_{F}) / k T} + 1}, n_{A} = N_{A} \frac{1}{e^{(E_{F} - E_{A}) / k T} + 1} .

Here we refer to $n_{D}$ ( $n_{A}$ ) as the electron(hole) concentration inside donor(acceptor) bound state. With this, the charge balance equation reads:

n_{e} - n_{h} + n_{D} - n_{A} = N_{D} - N_{A} .

The equation is not an easy one to solve: all of the terms on the lhs depend non-trivially on $E_{F}$ . In order to solve it, we require several approximations:

Firstly, we assume that the Fermi level is far from both bands $E_{F} - E_{v} ≫ k T$ and $E_{c} - E_{F} ≫ k T$ . The approximation allows us to use the law of mass action from the previous lecture:

$n_{e} n_{h} = N_{C} N_{V} e^{- E_{G} / k T} \equiv n_{i}^{2} .$
Secondly, we determined that electrons/holes are weakly bound to the impurities. Therefore, at ambient temperatures, we assume that all the impurities are fully ionized and therefore $n_{D} = n_{A} = 0$ .

The approximations allow us to simplify the charge balance equation:

n_{e} - n_{i}^{2} / n_{e} = N_{D} - N_{A},

which is just the quadratic equation for $n_{e}$ . When $| N_{D} - N_{A} | ≫ n_{i}$ the semiconductor is extrinsic, so that if $N_{D} > N_{A}$ ( $n$ -doped semiconductor), $n_{e} \approx N_{D} - N_{A}$ and $n_{h} = n_{i}^{2} / (N_{D} - N_{A})$ . If $N_{D} < N_{A}$ ( $p$ -doped semiconductor), $n_{h} \approx N_{A} - N_{D}$ and $n_{e} = n_{i}^{2} / (N_{A} - N_{D})$ .

We can now easily find the Fermi level. From the first approximation, we know that the simplified relation between $n_{e / h}$ and $E_{F}$ is:

\begin{aligned} n_{e} & \approx N_{C} e^{- (E_{c} - E_{F}) / k T}, \\ n_{h} & \approx N_{V} e^{(E_{v} - E_{F}) / k T} . \end{aligned}

We express the lhs with the quadratic equation solution and solve for Fermi level:

E_{F} = E_{c} - k T \ln [N_{C} / (N_{D} - N_{A})], for N_{D} > N_{A},

and

E_{F} = k T \ln [N_{V} / (N_{A} - N_{D})], for N_{A} > N_{D} .

When is a semiconductor intrinsic, and when it is extrinsic?

By definition the semiconductor is intrinsic when $| N_{D} - N_{A} | ≪ n_{i}$ , so $k T ≳ E_{G} / \log [N_{C} N_{V} / (N_{D} - N_{A})^{2}]$ .

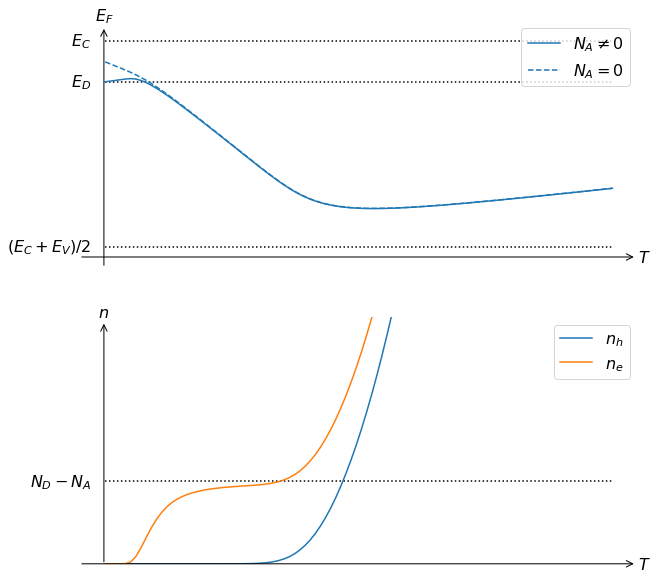

Temperature dependence of the carrier density and Fermi level¶

It is instructive to consider how $E_{F}$ , $n_{e}$ and $n_{h}$ depend on carrier concentrations. Below we show what happens in an n-doped semiconductor, however, the same logic applies to p-doped semiconductors.

def n(E_F, T, N_C, N_V, N_D, N_A, E_C, E_V, E_D, E_A, /):
    """Compute total charge density of a doped semiconductor."""
    n_e = N_C * np.exp(-(E_C - E_F) / T)
    n_h = N_V * np.exp((E_V - E_F) / T)
    n_ionized_D = N_D / (1 + np.exp((E_F - E_D) / T))
    n_ionized_A = N_A / (1 + np.exp((E_A - E_F) / T))
    return n_e - n_h - n_ionized_D + n_ionized_A


def equilibrium_E_F(*args):
    """Compute the Fermi energy in equilibrium"""
    E_C, E_V = args[5], args[6]
    return root_scalar(n, args, bracket=(E_C, E_V)).root


N_C, N_V, N_D, N_A, E_C, E_V, E_D, E_A = 1, 4, 0.01, 0.003, 1, -1, 0.8, -0.9
Ts = np.linspace(0.001, .4, 100)
E_Fs = np.array(
    [equilibrium_E_F(T, N_C, N_V, N_D, N_A, E_C, E_V, E_D, E_A) for T in Ts]
)

fig = pyplot.figure(figsize=(10, 10))
ax1, ax2 = fig.subplots(nrows=2)
ax1.plot(Ts, E_Fs, label=r"$N_A \neq 0$")
ax1.plot(
    Ts,
    [equilibrium_E_F(T, N_C, N_V, N_D - N_A, 0, E_C, E_V, E_D, E_A) for T in Ts],
    label="$N_A = 0$",
    linestyle="--",
    c="#1f77b4",
)
ax1.hlines([E_C, (E_C + E_V) / 2, E_D], Ts[0], Ts[-1], 'k', linestyles=":")
ax1.set_ylim(-.1, 1.1)
ax1.set_ylabel("$E_F$")
ax1.set_xlabel("$T$")
ax1.set_yticks([E_C, (E_C + E_V) / 2, E_D])
ax1.set_yticklabels(["$E_C$", "$(E_C + E_V) / 2$", "$E_D$"])
ax1.legend()
draw_classic_axes(ax1, y=-.05, ylabeloffset=0.01)

ax2.plot(Ts, N_V * np.exp((E_V - E_Fs) / Ts), label="$n_h$")
ax2.plot(Ts, N_C * np.exp(-(E_C - E_Fs) / Ts), label="$n_e$")
ax2.hlines((N_D - N_A), Ts[0], Ts[-1], 'k', linestyles=":")
ax2.set_ylim(0, (N_D - N_A) * 3)
ax2.legend()
ax2.set_ylabel("$n$")
ax2.set_xlabel("$T$")
ax2.set_yticks([(N_D - N_A)])
ax2.set_yticklabels(["$N_D - N_A$"])
draw_classic_axes(ax2, ylabeloffset=0.01)

png

As we go from highest to lowest temperature, we observe several regimes:

Intrinsic limit . If the temperature is sufficiently large, then $n_{i} ≫ | N_{D} - N_{A} |$ and therefore $n_{e} \approx n_{h} \approx n_{i}$ . Additionally, if holes are heavier than electrons, then $E_{F}$ grows with temperature in this limit.
Extrinsic limit. As we decrease the temperature, we decrease the number of intrinsic carriers to the point where most of the charge carriers come form the fully ionized donors. As a result, the number of carriers stays approximately constant in this temperature range.
Freeze-out limit. Once the temperature is sufficiently low $k T ≪ E_{G} - E_{D}$ , we expect the electrons to "freeze away" from the conduction band to the donor band. The charge carriers still come from the donors, however, not all donors are ionized now.
Zero temperature. There are no charge carriers in neither conduction nor valence bands. If there are no acceptors, then the Fermi level goes to halfway between the donor and the conduction bands. Otherwise, the highest energy electrons are in the donor band and therefore $E_{F}$ should match the donor band.

Exercise

check that you can reproduce all the relevant limits in a calculation.

Combining semiconductors: $p n$ -junction¶

What happens if we bring two differently doped semiconductors together (one of $p$ -type, one of $n$ -type)?

Band diagram¶

Previously we dealt with homogeneous materials, now the position coordinate (let's call it $x$ ) starts playing a role. We represent the properties of inhomogeneous materials using the band diagram. The main idea is to plot the dependence of various energies ( $E_{F}$ , bottom of conduction band $E_{C}$ , top of the valence band $E_{V}$ ) as a function of position.

Let us build up the band diagram step by step:

def trans(x, a, b):
    x = (x-a)/(b-a)
    return h(x)/(h(x) + h(1-x))


def h(x):
    return (x > 0) * np.exp(-1/x)

left_cutoff = 0.3
right_cutoff = 0.7
x = np.linspace(0, 1, 100)
mid_idx = (x > left_cutoff) * (x < right_cutoff)


Ef_p = 0.5
Ef_n = Ef_p + 0.25
Ef_delta = Ef_n - Ef_p

E_C_1 = 1
E_V_1 = 0.25

E_C = E_C_1 - trans(x, left_cutoff, right_cutoff)*Ef_delta
E_V = E_V_1 - trans(x, left_cutoff, right_cutoff)*Ef_delta

fig1 = go.Figure()

fig1.add_trace(go.Scatter(
        x = [0, left_cutoff],
        y = [E_V_1, E_V_1],
        line_color = 'red',
        mode = 'lines',
        name = r'$E_V$',
    ))

fig1.add_trace(go.Scatter(
        x = [0, left_cutoff],
        y = [E_C_1, E_C_1],
        line_color = 'blue',
        mode = 'lines',
        name = r'$E_C$',
    ))

# n bands (button 1)
fig1.add_trace(go.Scatter(
        x = [right_cutoff, 1],
        y = [E_V_1, E_V_1],
        line_color = 'red',
        mode = 'lines',
        showlegend=False
    ))

fig1.add_trace(go.Scatter(
        x = [right_cutoff, 1],
        y = [E_C_1, E_C_1],
        line_color = 'blue',
        mode = 'lines',
        showlegend=False
    ))

# p fermi
fig1.add_trace(go.Scatter(
        x = [0, left_cutoff],
        y = [Ef_p, Ef_p],
        line_color='black',
        mode = 'lines',
        line_dash='dot',
        name=r'$E_F$'

    ))

# n fermi (button 1)
fig1.add_trace(go.Scatter(
        x = [right_cutoff, 1],
        y = [Ef_n, Ef_n],
        line_color='black',
        mode = 'lines',
        line_dash='dot',
        name='r$E_f$',
        showlegend=False
    ))

fig1.add_trace(go.Scatter(
        x = [right_cutoff, 1],
        y = [E_V_1-Ef_delta, E_V_1-Ef_delta],
        line_color = 'red',
        mode = 'lines',
        showlegend=False,
        visible=False
    ))

fig1.add_trace(go.Scatter(
        x = [right_cutoff, 1],
        y = [E_C_1-Ef_delta, E_C_1-Ef_delta],
        line_color = 'blue',
        mode = 'lines',
        showlegend=False,
        visible=False
    ))


fig1.add_trace(go.Scatter(
        x = [0, 1],
        y = [Ef_p, Ef_p],
        line_color='black',
        mode = 'lines',
        line_dash='dot',
        name='r$E_F$',
        visible=False,

    ))


fig1.add_trace(go.Scatter(
        x = x[mid_idx],
        y = E_C[mid_idx],
        line_color='blue',
        line_dash='dot',
        visible=False,
        showlegend=False

    ))

fig1.add_trace(go.Scatter(
        x = x[mid_idx],
        y = E_V[mid_idx],
        line_color = 'red',
        line_dash='dot',
        visible=False,
        showlegend=False
    ))

base_annot = [
    dict(
    x = 1.065,
    y = -0.1,
    xref = "x", yref = "y",
    axref = "x", ayref = "y",
    text = "",
    ax = 0.9,
    ay = -0.1,
    showarrow=True,
    arrowhead=3,
    arrowsize=30,
    arrowwidth=0.1,
    arrowcolor='black'),

    dict(
    x = -0.05,
    y = 1.12,
    xref = "x", yref = "y",
    axref = "x", ayref = "y",
    text = "",
    ax = -0.05,
    ay = 1.1,
    showarrow=True,
    arrowhead=3,
    arrowsize=30,
    arrowwidth=0.1,
    arrowcolor='black'),

    dict(
    showarrow=False,
    x = 0.15,
    y = -0.05,
    xref = "x", yref = "y",
    axref = "x", ayref = "y",
    text = "p-region"),

    dict(
    showarrow=False,
    x = 0.5,
    y = -0.05,
    xref = "x", yref = "y",
    axref = "x", ayref = "y",
    text = "depletion region"),

    dict(
    showarrow=False,
    x = 0.85,
    y = -0.05,
    xref = "x", yref = "y",
    axref = "x", ayref = "y",
    text = "n-region")
]

annot = [
    dict(
    x = 0.85,
    y = 0.75,
    xref = "x", yref = "y",
    axref = "x", ayref = "y",
    ax = 0.85,
    ay = 0.9,
    showarrow=True,
    arrowhead=3,
    arrowsize=2,
    arrowwidth=1,
    arrowcolor='black'),

    dict(
    x = 0.85,
    y = 1,
    xref = "x", yref = "y",
    axref = "x", ayref = "y",
    ax = 0.85,
    ay = 0.849,
    showarrow=True,
    arrowhead=3,
    arrowsize=2,
    arrowwidth=1,
    arrowcolor='black'),

    dict(
    x = 0.8,
    y = 0.9,
    xref = "x", yref = "y",
    axref = "x", ayref = "y",
    text = r'$\delta \varphi$',
    font = dict(size=40),
    showarrow=False),

    *base_annot
        ]

updatemenus=list([
    dict(
        type="buttons",
        direction="down",
        active=0,
        buttons=list([
            dict(label="n and p",
                 method="update",
                 args=[{"visible": [True, True, True, True, True, True, False, False, False, False, False]}, {'annotations':base_annot}]),
            dict(label="Equilibrium",
                 method="update",
                 args=[{"visible": [True, True, False, False, False, False, True, True, True, False, False]},  {'annotations':annot}]),
            dict(label="Band Bending",
                 method="update",
                 args=[{"visible": [True, True, False, False, False, False, True, True, True, True, True]},  {'annotations':annot}]),
        ]),
    )
]
)

layout = dict(
    dragmode=False,
    showlegend = True,
    updatemenus=updatemenus,
    plot_bgcolor = 'rgb(254, 254, 254)',
    yaxis_range=[(E_V_1-Ef_delta)-0.1, 0.1+E_C_1],
    xaxis_range=[-0.05, 1.05],
    width = 800,
    height = 600,
    xaxis=dict(title=r'$x$', showticklabels=False),
    yaxis=dict(title=r'$E$', showticklabels=False),
    title='Band Diagram'
)


fig1.add_annotation(
    x = 1.065,
    y = -0.1,
    xref = "x", yref = "y",
    axref = "x", ayref = "y",
    text = "",
    ax = 0.9,
    ay = -0.1,
    showarrow=True,
    arrowhead=3,
    arrowsize=30,
    arrowwidth=0.1,
    arrowcolor='black')

fig1.add_annotation(
    x = -0.05,
    y = 1.12,
    xref = "x", yref = "y",
    axref = "x", ayref = "y",
    text = "",
    ax = -0.05,
    ay = 1.1,
    showarrow=True,
    arrowhead=3,
    arrowsize=30,
    arrowwidth=0.1,
    arrowcolor='black')

fig1.add_annotation(
    showarrow=False,
    x = 0.15,
    y = -0.05,
    xref = "x", yref = "y",
    axref = "x", ayref = "y",
    text = "p-region")

fig1.add_annotation(
    showarrow=False,
    x = 0.5,
    y = -0.05,
    xref = "x", yref = "y",
    axref = "x", ayref = "y",
    text = "depletion region")

fig1.add_annotation(
    showarrow=False,
    x = 0.85,
    y = -0.05,
    xref = "x", yref = "y",
    axref = "x", ayref = "y",
    text = "n-region")

fig1.update_xaxes(showline=True, linewidth=2, linecolor='black')
fig1.update_yaxes(showline=True, linewidth=2, linecolor='black')

fig1.update_layout(layout)
fig1

The main difference between $n$ -type and $p$ -type semiconductors is the location of the Fermi level $E_{F}$ (see "n and p" tab above). The Fermi level of an $n$ -type semiconductor is close to the donor states. On the other hand, the $p$ -type semiconductor has its Fermi level near the acceptor states. At equilibrium (no external fields), we do not expect to see any currents in the system and therefore the Fermi level $E_{F}$ must be constant across the system (see "Equilibrium" tab). To achieve a homogenous Fermi level, we could bring up in energy the $p$ -type region or bring down the $n$ -type region until the Fermi levels are aligned. However, a question arises: what happens at the junction?

We can understand the junction with a simple picture. In physics, most of the time we expect things to change continuously. Therefore, we expect that the valence $E_{V}$ and conduction $E_{C}$ bands connect continuously in the middle region as shown in the "Band Bending" tab. On the contrary, if the bands were to be discontinuous, then an electric field must develop at a single point in the middle region to shift the bands in energy. However, we do not expect such point-like electric fields to develop because electrons can move freely in semiconductors.

On a more microscopic level, the electrons at the junction in the $n$ -type semiconductor will move into the $p$ -type semiconductor to recombine with the holes. After the recombination, the $n$ and $p$ -type semiconductors lose an electron and a hole respectively. As a result, a positive ionized donor dopant is not screened anymore and the $n$ -type semiconductor obtains a positive overall charge. Similarly, $p$ -type region obtains a negative charge. Therefore, an electric field develops across the junction. As the recombination process continues, a larger charge density $ρ$ develops and thus the electric field grows until it is large enough to prevent the electrons/holes from crossing the junction. Inside the region, energy deviates by $δ φ ≫ k T$ from the bulk value and thus the density of electrons/holes drops exponentially fast. Therefore, we refer to the region as the depletion region.

The charge density $ρ$ distribution inside of a depletion region is shown below:

The typical values of $w_{n} + w_{p}$ are $\sim 1 μ m$ at $N_{A}, N_{D} \sim 10^{16} {cm}^{- 3}$ , and $\sim 0.1 μ m$ at $N_{A}, N_{D} \sim 10^{18} {cm}^{- 3}$ , so it may be much larger than the distance between the dopant atoms.

$p n$ -junction diode¶

What happens if we apply voltage to a junction?

Because the conductivity of the $p$ -region and $n$ -region is much larger than that of the depletion region, most of the voltage difference will appear in the depletion region:

The number of majority carriers moving across the junction is proportional to their concentration. Increasing the voltage bias "pushes" carriers up in energy, it depends exponentially on the voltage.

We therefore get the Shockley diode equation:

I = I_{0} (\exp (e V / k T) - 1)

Solar cell¶

Light absorbed in the $p n$ -junction creates electron-hole pairs. The eletric field then moves electrons to the $n$ -doped region, holes to the $p$ -doped one, and therefore generates a voltage.

Semiconducting laser¶

A heavily doped $p n$ -junction so that the Fermi level is in the conduction/valence band produces an extremely high rate electron-hole recombination with an extremely high rate, and makes the $p n$ -junction function like a laser.

MOSFET and quantum well¶

See the book for details.

Summary¶

Density of states in a doped semiconductor:

fig_dos

png

Charge balance determines the number of electrons and holes as well as the position of the Fermi level.

If dopant concentration is low, then $n_{e} = n_{h} = n_{i} \equiv \sqrt{N_{C} N_{V}} e^{- E_{G} / 2 k T}$ .

If dopant concentration is high, then in $n$ -doped semiconductor $n_{e} = N_{D} - N_{A}$ and $n_{h} = n_{i}^{2} / n_{e}$ (or vice versa in $p$ -doped one).

Temperature switches between intrinsic and extrinsic regimes, and controls the carrier density

Conductance combines the contributions of electrons and holes, and allows to determine $E_{G}$ .

A $p n$ -junction has a depletion layer in its middle with the potential in a $p n$ -junction having the following shape (where the transition region is made out of two parabolas):

Exercises¶

Exercise 1: Crossover between extrinsic and intrinsic regimes¶

In the lecture we have identified the intrinsic and extrinsic regimes. Let us now work out what happens when the semiconductor is at the border between these two regimes, and the dopant concentration $| N_{D} - N_{A} |$ is comparable to the intrinsic one $n_{i}$ .

Write down the law of mass action and the charge balance condition for a doped semiconductor.
Solve this system of equations for $n_{e}$ and $n_{h}$ only assuming $E_{G} ≫ k_{B} T$ .
Verify that your solution reproduces intrinsic regime when $| N_{D} - N_{A} | ≪ n_{i}$ and the extrinsic regime when $| N_{D} - N_{A} | ≫ n_{i}$

Exercise 2: Donor ionization¶

Let us examine when the full donor ionization is a good assumption. For that we consider a doped semiconductor in the extrinsic regime.

Assume that all dopants are ionized, determine the position of the Fermi level.
Write down the concentration of dopants that are not ionized.
Determine at what donor concentration one cannot assume anymore that all donors are ionized in germanium at room temperature.

Exercise 3: Performance of a diode¶

Consider a pn-junction diode as follows

source

By Raffamaiden CC BY-SA 3.0), Link

The current flowing through a diode as a function of applied bias voltage is given by the Shockley diode equation:

I (V) = I_{s} (T) (e^{\frac{e V}{k T}} - 1)

where $I_{s} (T)$ is the saturation current.

What is the significance of adding dopant atoms to an intrinsic semiconductor? Can two intrinsic semiconductors joined together make a diode?
Discuss which processes carry current in a diode under reverse bias.
Based on this, estimate how the saturation current $I_{s}$ depends on temperature.

Exercise 4: Quantum well heterojunction in detail¶

Consider a a quantum well formed from a layer of GaAs of thickness $L$ , surrounded by layers of Al $_{x}$ Ga $_{1 - x}$ As.

Quantum Well
